ODM Thermal Protection Switch Micro Temperature Controller Cut Out For Curtain Motor
Basic Properties
Place of Origin:
China
Brand Name:
HCET
Certification:
CQC, UL, TUV, CE, ROHS
Model Number:
HCET-A
Trading Properties
Minimum Order Quantity:
1000
Price:
please contact us
Payment Terms:
T/T
Supply Ability:
10000000 pcs per month
Product Summary
ODM Thermal Protection Switch Micro Temperature Controller Cut Out For Curtain Motor Product Name TB02 thermal protector Voltage 250V Current 2.5A Temperature Range 30~155℃ Tolerance ±3℃,±5℃ Size 10*5*2mm Application Curtain Motors HCET-A TB02 Bimetal Thermal Protection Switch The HCET-A TB02 is a ...
Product Details
Highlight:
ODM Thermal Protection Switch
,Curtain Motor Thermal Protection Switch
,motor thermal cut out Switch
Product Name:
TB02 Thermal Protector
Voltage:
250V
Current:
2.5A
Temperature Range:
30~155℃
Tolerance:
±3℃,±5℃
Size:
10*5*2mm
Application:
Curtain Motors
Product Description
ODM Thermal Protection Switch Micro Temperature Controller Cut Out For Curtain Motor
| Product Name | TB02 thermal protector |
|---|---|
| Voltage | 250V |
| Current | 2.5A |
| Temperature Range | 30~155℃ |
| Tolerance | ±3℃,±5℃ |
| Size | 10*5*2mm |
| Application | Curtain Motors |
HCET-A TB02 Bimetal Thermal Protection Switch
The HCET-A TB02 is a precision-engineered bimetal thermal protection switch designed to safeguard curtain motors from overheating and electrical damage. This micro temperature control switch utilizes a bimetal disc mechanism to monitor and regulate temperature in real time, automatically disconnecting power when unsafe temperatures are detected to prevent failures, fire hazards, or component degradation.
Key Features
- Bimetal Thermal Protection Technology: Durable bimetal disc responds to temperature changes, triggering instant circuit interruption for reliable thermal protection.
- Precision Temperature Control: Calibrated activation range (30°C-155℃, customizable) ensures timely shutdown to protect motor components.
- Automatic Reset Function: Restores power automatically when safe operating temperatures are reached, minimizing downtime.
- Compact & Durable Design: Ultra-small footprint (10×5×2mm) allows seamless integration into space-constrained motor assemblies.
- Environmental Resistance: Designed to withstand vibration, dust, and humidity for long-term reliability.
Electrical Specifications
| Temperature Range | 30℃~155℃ (Customizable) |
| Temperature Tolerance | ±3℃, ±5℃ |
| AC Voltage/Current | 2.5A/250V AC, 5A/120V AC |
| DC Voltage/Current | 10A/12V DC, 5A/24V DC |

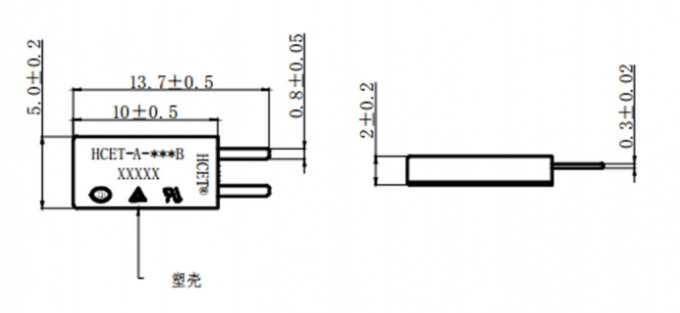

Dimensions
Product Details
Application Example
